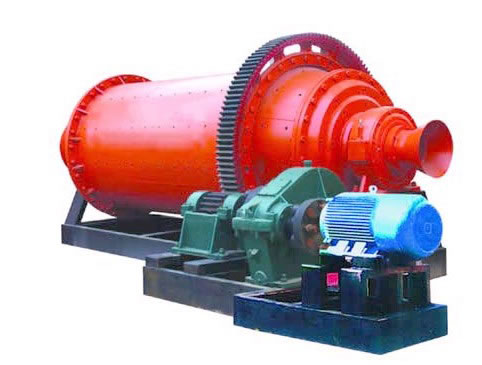

濕式球磨機
| 規格型號 | 產量(t/h) | 筒體轉速 |
研磨體 裝載量(t) |
主電機 | 主減速機 | 輔助傳動 | 重量 | |
| 型號 | 功率 | |||||||
| 1.5×5.7 | 3.0-8.0 | 29.2 | 11.0 | JR127-8 | 130 | ZD50-9-Ⅱ | 23.6 | |
| 1.8×6.4 | 6.0-13 | 24.5 | 19.6 | JR138-8 | 245 | ZD60-8-Ⅱ | 36.0 | |
| 2.2×6.5 | 8.0-16 | 21.4 | 32 | JR158-8 | 380 | ZD70-9-Ⅰ | 47.5 | |
| 2.4×6.0 | 10-20 | 20.9 | 29 | JR4503-8 | 400 | ZD70-9-Ⅰ | 66.0 | |
| 2.4×7.0 | 10-25 | 20.9 | 32.5 | JR1512-8 | 475 | ZD70-9-Ⅰ | 73.0 | |
| 2.4×8.0 | 10-28 | 20.9 | 38 | JR1510-8 | 570 | ZD80-8-Ⅱ | 76.0 | |
| 2.6×5.0 | 8.0-22 | 20.9 | 31 | JR1512-8 | 475 | ZD80-8-Ⅱ | 11 | 68.0 |
| 2.6×6.5 | 8.0-30 | 20.9 | 34 | JR1512-8 | 570 | ZD80-8-Ⅱ | 11 | 84.0 |
| 2.7×6.0 | 15-35 | 19.4 | 52 | YR630-8 | 630 | MBY630 | 11 | 94.0 |
| 2.7×7.0 | 16-38 | 19.4 | 60 | YR710-8 | 710 | MBY710 | 15 | 116 |
| 2.7×8.0 | 18-40 | 19.4 | 63 | YR800-8 | 710 | MBY710 | 15 | 122 |
| 3.0×6.0 | 18-36 | 19.4 | 68 | YR710-8 | 710 | MBY710 | 15 | 126 |
| 3.0×7.0 | 20-40 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 132 |
| 3.0×9.0 | 25-45 | 19.4 | 85 | YR1000-8 | 1000 | MBY800 | 15 | 154.8 |
| 3.2×6.0 | 26-50 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 135 |
| 3.2×7.0 | 28-55 | 18.3 | 81 | YR1000-8 | 1000 | MBY800 | 15 | 149 |
| 3.2×8.0 | 30-60 | 18.3 | 90 | YR1000-8 | 1000 | MBY800 | 15 | 160 |
| 3.2×9.0 | 35-65 | 17.5 | 96 | YR1250-8 | 1250 | MBY900 | 15 | 168 |
| 3.6×6.0 | 38-80 | 16.5 | 105 | YR1600-8 | 1600 | MBY1000 | 22 | 188.5 |
| 3.6×7.0 | 45-90 | 16.5 | 110 | YR1600-8 | 1600 | MBY1000 | 22 | 199.5 |
| 3.6×9.0 | 50-100 | 16.5 | 120 | YR1800-8 | 1800 | MBY1000 | 22 | 240 |
濕式球磨機（同步電機）
| 規格型號 |
產量 (t/h) |
筒體轉速 |
研磨體 裝載量（t） |
主電機 | 主減速機 | 輔助傳動（kw） | 重量 | |
| 型號 | 功率 | |||||||
| 2.7×3.6 | 13-28 | 22.2 | 39.0 | TD400-32 | 400 | 1000-300×1 | 11 | 89.0 |
| 3.2×4.5 | 25-45 | 20.4 | 65.0 | TD800-36 | 800 | 1000-300×1 | 11 | 139 |
| 3.2×6.4 | 30-45 | 18.3 | 86.0 | TD1000-36 | 1000 | 1000-300×1 | 15 | 145 |
| 3.6×5.0 | 35-75 | 17.3 | 96.0 | TD1400-40 | 1400 | 875-300×2 | 15 | 179 |
| 3.6×6.0 | 40-85 | 17.3 | 117 | TD1600-40 | 1600 | 875-300×2 | 15 | 188 |
| 3.6×6.4 | 60-85 | 17.3 | 102 | TD1600-40 | 1600 | 875-300×2 | 15 | 190 |
